Strong shaker for Separatory funnel

Strong shaker SR-2EW

Code No.: 0061005-000

Shakes Separatory funnels vertically and powerfully with energy savings. Compatible with other vessels. Low noise with our proprietary "Silent swing mechanism".

SR-2EW with Separatory funnel shaking platform (Option).

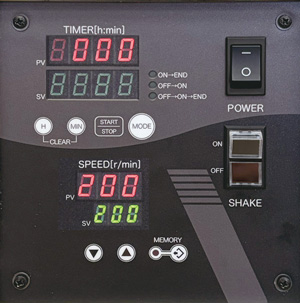

Operation panel

Applications

Liquid extraction of analysis samples such as residual pesticides and soil components.
Pretreatment of Solid phase extraction of analytical sample.
Various mixing-stirring etc.

Down Load(Useful Information)

General Catalog

Features

Strong but quiet shaking with SS, only splash sound cannot be absorbed
Noise level is only about 45dB (as in library and quiet residential area at noon time) by TAITEC original silent swing (SS) mechanism. It enables strong but quiet shaking.
Separating funnel holder can fix firmly with small force
Holder of separating funnel shaking rack can be fixed firmly even by females. There are variations to meet with various size of round, double tube, Squibb type.

From left, standard Globe Figure (Hertz-type), mid-tube type (double tube type) and Squibb type
Capacity allowance to support mass process
Not only quiet. It also has sufficient capacity of approx. 7.5kg (For SR-2EW, approx. 7.5kg for one side).
Timer is a digital setting. It operates easily by a digital display.
It has been renewed and timer mode is increased. A new timer is equipped with 3 kind of mode.
①Shaking only for the setting time(ON – END)
②Shaking after setting time(OFF – ON)
③ Please set before the scheduled time of the previous day, and end after shaking for the decided time(OFF – ON – END)
If you want to set and start shaking from optional time on the return home,
The shaking sample is complete immediately after the next day shift, and you can immediately proceed to the next process.

Specifications

ModelSR-2EW
Shaking motionReciprocal (Vertical)
Shaking speed50 to 300 r/min (*2)
Amplitude40mm (fixed)
Capacity3 pcs of Up to 1 L Separatory funnel (SR-2EW 6 pcs) (*3)
Maximum loadOne side: Approx. 7.5 kg(Shaking platform is included)
Safety devices/functionsMotor protection circuit at overload, Fuse
Dimensions (W×D×H)410 × 760 × 500 mm
WeightApprox. 57 kg
Power SupplyAC100V/AC220-240V/1.2A (built-in down transformer)
(*1)May not be smoothly shaked at 50 to 99 r/min.
(*2)The shaker works when the plat-forms are mounted on both side but while not work when the platform is mounted on only one side.
(*3)The shaking platform is sold separately. The vessels that can be used for vertical shaking and horizontal shaking differ (the separatory funnel is for vertical shaking only). For details, the capacity, and other shaking platforms, please see the right page.

Dimensions

Accessories

Separation funnel shaking platform | HE-3 for SR-2
Ratchet type holder which can hold separation funnels firmly with easy operation.
■Applicable Container / Number:50ml - 1L Round sep ...
Separation funnel shaking platform | HE-3W for SR-2
Ratchet type holder which can hold separation funnels firmly with easy operation.
■Applicable Container / Number:200ml - 1L Round se ...
Separation funnel shaking platform | HE-5 for SR-2
Ratchet type holder which can hold separation funnels firmly with easy operation.
■Applicable Container / Number:50ml - 200ml Round ...
Separation funnel shaking platform | HE-5W for SR-2
Ratchet type holder which can hold separation funnels firmly with easy operation.
■Applicable Container / Number: 200ml Round separa ...
Separation funnel shaking platform | FU-1R for SR-2
Ratchet type holder which can hold separation funnels firmly with easy operation.
■Applicable Container / Number:100ml - 3L Round se ...
Separation funnel shaking platform | FU-2S for SR-2
Ratchet type holder which can hold separation funnels firmly with easy operation.
■Applicable Container / Number:100ml - 2L Round se ...
Separation funnel shaking platform | FU-3S for SR-2
Ratchet type holder which can hold separation funnels firmly with easy operation.
■Applicable Container / Number:100ml - 2L Round se ...
Test tube rack shaking platform | C half shaking platform for SR-2
Up to 10 pcs of Stoppered test tube and Centrifuge tube(φ10 to 37 mm × 100 to 120 Lmm in length) can be set.
■Applicable Container / Number:Up to 10 pcs of Sto ...
Adapter for flask | Flask adapter A for SR-2
This is for attaching the Erlenmeyer flask to the separatory funnel shaking platform.
■Vessels/Capacity:Up to 300 mL Erlenmeyer flasks, ...
Adapter for flask | Flask adapter B for SR-2
This is for attaching the Erlenmeyer flask to the separatory funnel shaking platform.
■Plastic bottle, GL-45 screw cap bottle, Bottle fo ...
Plastic bottle adapter | Plastic bottle adapter for SR-2
This is for attaching the Plastic bottle to theseparatory funnel shaking platform HE-3.
■Vessels/Capacity:For 2 L and 3 L ■*SR-2ES should ...
