Product Info

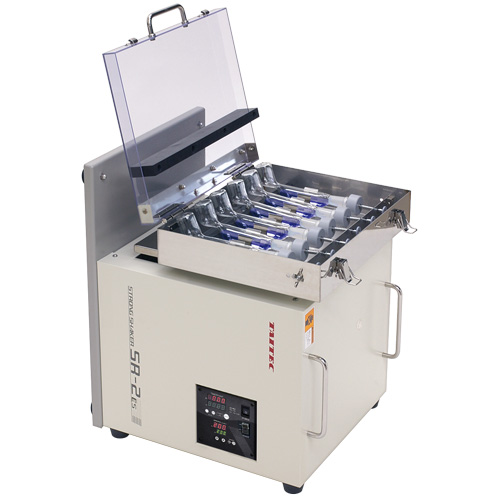

Mojonnier tube shaking platform M shaking platform for SR-2

Code No.： 0081617-000

Special example of SR-2ES Shaking table This is a shaking table for vessels used in lipid extractions in Japan. The shaking table is designed to avoid the unevenness that occurs when shaking by hand.

Applications

●Fat extraction testing using majonia tube.

Down Load（Useful Information）

General Catalog

Features

The comparison test for Shaking tube by hand versus Shaker with tubes

Put 100 g of sample into each Mojonnier tube. Compared the amount of fat extraction between Shaking tube by hand to Shaker with tubes for 1 min. As a result, we verified that the Shaker with tubes can equally be used compared to Shaking a tube by hand.
*The shaking speed for Shaker with tubes was 240 r/min.

Specifications

Model	SR-2ES with M Shaking platform
Capacity	Mojonnier tube × 6 pcs
Weight	Approx. 5 kg
Dimensions (W×D×H)	373 × 408 × 106 mm (Protrusions are not included)
