Product Info
Shakers for Well plates and Microtubes
Micro mixer E-022T
Code No.： 0089532-000
This well plate/tube mixer supports routine ELISA work and various microtubes with agitation speed of 300–2500 r/min and quiet operating sound.
Applications
•Promotion of Eenzyme digestion of mouse tail, etc.•Promotion of ELISA reaction, Biopanning, etc.
•Plasmid DNA extraction
Down Load（Useful Information）
General CatalogFeatures
The S-Max drive enables highly efficient stirring/culturing
The S-Max drive is a mechanism that improves the accuracy of vibration speed and reduces wobbling in the vertical direction by employing a special rubber and crankshaft structure.It prevents the main unit from moving due to the vibration during operation and also lessens noise. The vibration and noise of the main unit are reduced by 50% or more, as compared with existing devices.
Features for Horizontal eccentric shaking
Horizontal eccentric shaking is a method designed where multiple parallel microtubes are evenly hung for a stirring effect similar to Test tube mixers in which the tubes are stirred one by one. Optimum for 0.5/1.5 mL Microtubes as well as for 96-well Microplates and Deep well plates.
Specifications
| Model | E-022T |
|---|---|
| Shaking Method | horizontal excentric vibration(S-Max drive) |
| Vibration speed | 300 to 2500 r/min |
| Shaking width | 2mm |
| Speed display/setting | Digital display/input |
| Ambient temp. range | +4℃ to +40℃ |
| Applicable vessels | Well plate (2 pcs. Deep well can be installed as standard 2 pcs.)Microtube (requires P.069 optional racks) |
| Safety devices/functions | Fuse, Overvoltage/overcurrent protection, Nonvolatile memory error,Speed limit error, Display/measuring range error, Motor overload |
| Dimensions (W×D×H) | 244×265×115 Hmm |
| Weight | Approx. 6 kg |
| Standard accessories | Fuse (with built-in Fuse Holder)×1 pc, Plate adapter |
| Power supply | AC 100 to 240 V |
Accessories
Microtube Rack | EM-0524
Alminum microtube rack for 24 pcs of 0.5ml microtube■Applicable Container / Number：24 tubes (0.5ml) ■M ...
Microtube Rack | EM-1524
Alminum microtube rack for 24 pcs of 1.5ml microtube■Applicable Container / Number：24 tubes (0.5ml/2.0 ...
Microtube Rack | EM-1515
Alminum microtube rack for 12 pcs of 5ml tube■Applicable Container / Number：5mL tube × 12 ■Dime ...

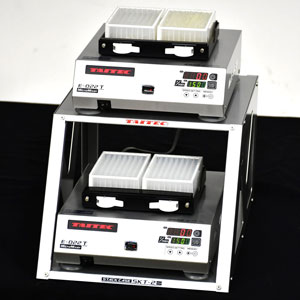

stacking shelf | SKT-2
Special frame that can install two E-022T■Applicable models：E-022T, up to two ■Dimensions ( ...
